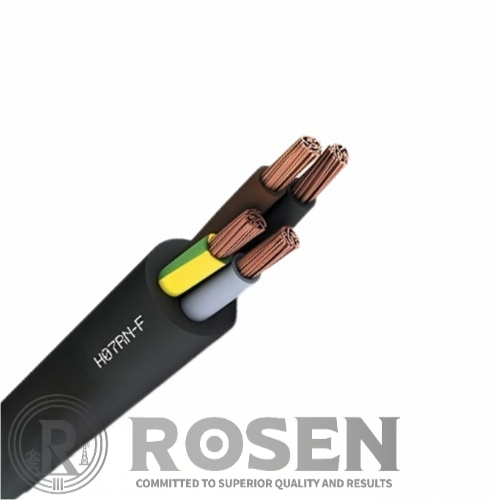

Overview

CHARACTERISTICS

Voltage Rating U/Uo

450/750V Suitable for 1kV in fixed application.

Temperature Rating

Fixed: -30°C to +90°C

Flexed: - 15oC to +90oC

Minimum Bending Radius

Fixed: 5 x overall diameter

Flexed: 8 x overall diameter

Core Identification

1 core: Black

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers

Green/Yellow

Sheath Colour

Black


STANDARDS

EN 50525-2-21, IEC 60228, UL 44, IEC 60245

Flame Retardant according to IEC/EN 60332-1-2

Water Resistant according to AD8


Construction

Conductor

Class 5 flexible copper conductor

Insulation

EPR (Ethylene Propylene Rubber)

Sheath

CPE (Chlorinated polyethylene)


Parameter
Three conductor IEC 60245（CU/EPR/CPE）
Five conductor IEC 60245（CU/EPR/CPE）
Three conductor 450/750V standard IEC 60245 (H07RN-F) CU/EPR/CPE
NO./mm2Wires OD （mm）Insulation thickness （mm）Diameter of cable（mm）CU weight
(kg/km)		Weight
of cable
(kg/km)		DC Resistance
(Ω/km)
3*1.50.25 0.8 10.07 41.01 153.95 13.300
3*2.50.25 0.9 12.35 68.34 233.35 7.980
3*40.30 1.0 14.54 109.35 331.07 4.950
3*60.30 1.0 16.56 164.02 443.76 3.300
3*100.40 1.2 22.48 273.37 796.26 1.910
3*160.40 1.2 24.88 437.39 1062.71 1.210
3*250.40 1.4 29.52 683.42 1542.67 0.780
3*350.40 1.4 32.26 956.79 1966.42 0.554
3*500.40 1.6 37.86 1366.84 2728.84 0.386
3*700.50 1.6 43.08 1913.57 3616.47 0.272
3*950.50 1.8 50.56 2596.99 4892.74 0.206
3*1200.50 1.8 53.13 3280.41 5800.75 0.161
3*1500.50 2.0 57.79 4100.51 7080.53 0.129

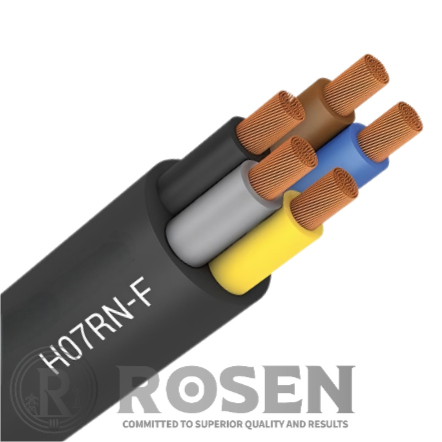

Five conductor 450/750V standard IEC 60245 (H07RN-F) CU/EPR/CPE
NO./mm2Wires OD （mm）Insulation thickness （mm）Diameter of cable（mm）CU weight
(kg/km)		Weight
of cable
(kg/km)		DC Resistance
(Ω/km)
5*1.50.25 0.8 12.19 68.34 230.86 13.300
5*2.50.25 0.9 14.94 113.90 349.87 7.980
5*40.30 1.0 17.82 182.25 508.29 4.950
5*60.30 1.0 20.44 273.37 690.79 3.300
5*100.40 1.2 27.05 455.61 1188.21 1.910
5*160.40 1.2 30.16 728.98 1616.99 1.210
5*250.40 1.4 36.21 1139.03 2392.70 0.780
5*350.40 1.4 39.48 1594.64 3055.88 0.554
5*500.40 1.6 46.27 2278.06 4236.96 0.386
5*700.50 1.6 52.85 3189.29 5650.43 0.272
5*950.50 1.8 62.15 4328.32 7654.55 0.206
5*1200.50 1.8 65.61 5467.35 9165.76 0.161
5*1500.50 2.0 71.44 6834.19 11219.25 0.129
