RFOU 0.6/1kV POWER CABLE

Application

For emergency and critical applications ranging from fire alarms to lighting systems, NEK606 standard cables are used in the marine industry and oil & gas industry.

They are specified where the applications require halogen-free and either flame-retardant or flame-resistant properties where life may be endangered by noxious fumes, and where sensitive equipment may be damaged by acid forming gases in the event of fire.

RFOU cables are designed for fixed onshore and offshore installations in a marine environment with a temperature operating range of-40c to +90c.

Play product video

Overview

Characteristics

Voltage Rating Uo/U

0.6/1kV

Test Voltage

3.5kV

Temperature Rating

-40°C to +90°C

Minimum Bending Radius

8 x overall diameter

Standards

NEK 606,IEC 60092-350, IEC/EN 60228

Flame Retardant acc. to IEC/EN 60332-3-24,IEC/EN 60332-1-2

Halogen free acc.to IEC/EN 61034-2, IEC/EN 60754-1/2

Standards applied

IEC 60092-353- Design

IEC 60228 class 2- Conductor

IEC 60092-360- Insulation

IEC 60092-360- Sheath

IEC 60332-1-2- Flame Retardant

IEC 60332-3-22- Flame Retardant

IEC 60754-1,2- Halogen Free

IEC 61034-1,2- Low Smoke

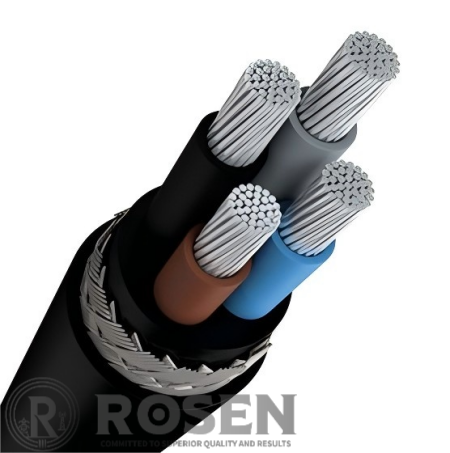

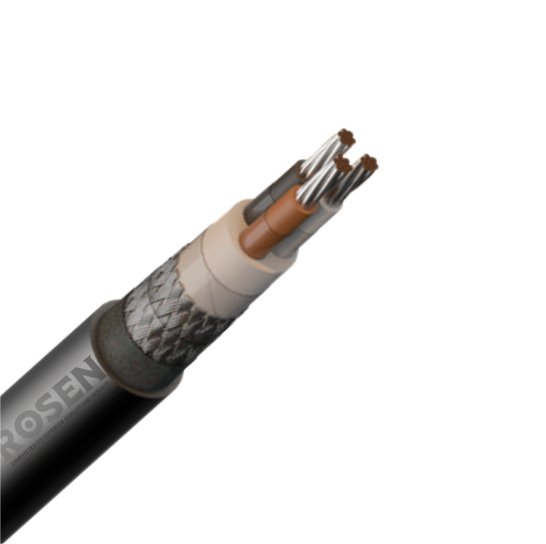

Construction

1.Conductor:

Class 2 stranded tinned copper conductor

2.Insulation:

Halogen free EPR (Ethylene Propylene Rubber)

3.Bedding:

Halogen free compound

4.Screen:

TCWB (Tinned Copper Wire Braid)

5.Sheath:

SHF2, MUD (halogen free, mud resistant)

6.Sheath Colour:

Black

7.Note:

Class 5 flexible conductors available on request

Parameter

Cables for offshore installations standard NEK 606 （TCU/EPR/TCWB/PCP)

Cables for offshore installations standard NEK 606 （TCU/EPR/TCWB/PCP)
NO./mm2	Wires OD （mm）	Insulation thickness （mm）	Shield wire diameter（mm）	Jacket thickness （mm）	Diameter of cable（mm）	CU weight (kg/km)	Weight of cable (kg/km)	DC Resistance (Ω/km)
2*1.5	0.2	1.0	0.20	2.8	13.36	27.07	272.30	13.700
2*2.5	0.2	1.0	0.30	2.8	15.00	45.12	365.17	8.210
2*4	0.3	1.0	0.30	2.8	16.44	72.19	445.07	5.090
2*6	0.3	1.0	0.30	2.8	17.94	108.28	538.83	3.390
2*10	0.4	1.0	0.30	2.8	20.40	180.47	711.41	1.950
2*16	0.4	1.0	0.30	2.8	22.26	288.75	900.39	1.240
2*25	0.4	1.2	0.30	2.8	26.00	451.17	1250.58	0.795
2*35	0.4	1.2	0.30	2.8	27.98	631.63	1532.04	0.565
2*50	0.4	1.4	0.30	3.2	33.22	902.34	2131.25	0.393
2*70	0.5	1.4	0.40	3.4	38.20	1263.27	2887.23	0.277
2*95	0.5	1.6	0.40	3.8	45.00	1714.44	3890.66	0.210
2*120	0.5	1.6	0.40	3.9	47.02	2165.60	4511.39	0.164
2*150	0.5	1.8	0.40	4.0	50.80	2707.01	5408.43	0.132
3*1.5	0.2	1.0	0.20	2.8	13.93	40.61	302.65	13.700
3*2.5	0.2	1.0	0.30	2.8	15.68	67.68	409.04	8.210
3*4	0.3	1.0	0.30	2.8	17.24	108.28	505.40	5.090
3*6	0.3	1.0	0.30	2.8	18.86	162.42	619.80	3.390
3*10	0.4	1.0	0.30	2.8	21.51	270.70	831.75	1.950
3*16	0.4	1.0	0.30	2.8	23.52	433.12	1076.55	1.240
3*25	0.4	1.2	0.30	2.8	27.56	676.75	1515.73	0.795
3*35	0.4	1.2	0.30	2.8	29.70	947.45	1887.83	0.565
3*50	0.4	1.4	0.40	3.3	35.79	1353.50	2733.36	0.393
3*70	0.5	1.4	0.40	3.4	40.62	1894.90	3575.27	0.277
3*95	0.5	1.6	0.40	3.9	48.10	2571.65	4838.70	0.210
3*120	0.5	1.6	0.40	4.0	50.26	3248.41	5684.65	0.164
3*150	0.5	1.8	0.40	4.2	54.53	4060.51	6891.20	0.132
4*1.5	0.2	1.0	0.30	2.8	15.16	54.14	379.41	13.700
4*2.5	0.2	1.0	0.30	2.8	16.79	90.23	473.33	8.210
4*4	0.3	1.0	0.30	2.8	18.53	144.37	591.83	5.090
4*6	0.3	1.0	0.30	2.8	20.34	216.56	733.50	3.390
4*10	0.4	1.0	0.30	2.8	23.32	360.93	997.23	1.950
4*16	0.4	1.0	0.30	2.8	25.57	577.49	1308.48	1.240
4*25	0.4	1.2	0.30	2.9	30.30	902.34	1876.74	0.795
4*35	0.4	1.2	0.30	3.2	33.29	1263.27	2406.22	0.565
4*50	0.4	1.4	0.40	3.4	39.36	1804.67	3401.23	0.393
4*70	0.5	1.4	0.40	3.8	45.34	2526.54	4538.70	0.277
4*95	0.5	1.6	0.40	4.1	53.20	3428.87	6076.31	0.210
4*120	0.5	1.6	0.40	4.4	56.00	4331.21	7230.19	0.164
4*150	0.5	1.8	0.40	4.6	60.74	5414.01	8779.76	0.132
5*1.5	0.2	1.0	0.30	2.8	16.17	67.68	432.12	13.700
5*2.5	0.2	1.0	0.30	2.8	17.98	112.79	544.67	8.210
5*4	0.3	1.0	0.30	2.8	19.92	180.47	687.55	5.090
5*6	0.3	1.0	0.30	2.8	21.94	270.70	859.14	3.390
5*10	0.4	1.0	0.30	2.8	25.27	451.17	1179.68	1.950
5*16	0.4	1.0	0.30	2.8	27.78	721.87	1561.78	1.240
5*25	0.4	1.2	0.30	3.2	33.63	1127.92	2306.64	0.795
5*35	0.4	1.2	0.40	3.3	36.80	1579.09	3004.16	0.565
5*50	0.4	1.4	0.40	3.5	43.19	2255.84	4128.42	0.393
5*70	0.5	1.4	0.40	4.0	49.97	3158.17	5543.57	0.277
5*95	0.5	1.6	0.40	4.5	59.07	4286.09	7489.66	0.210
5*120	0.5	1.6	0.40	4.6	61.73	5414.01	8852.12	0.164
5*150	0.5	1.8	0.40	4.8	66.96	6767.51	10763.81	0.132
