Characteristics
Voltage Rating U/Uo
0.6/1kV Suitable for 1.8/3kV.
Temperature Rating
Fixed:-40℃ to 90℃
Flexed:-25℃ to 90℃
Standards
BS 5467, IEC 60502
Flame Retardant according to IEC 60332
Overview

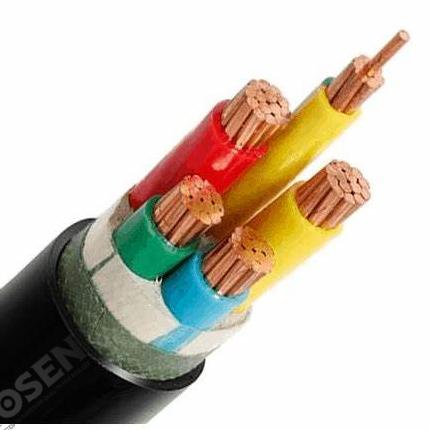

Construction
1.Conductor：
Class 1,2 or 5 Copper(AL) conductor
2.Insulation：
PVC
3.Sheath：
PVC
4.Core Identification:
1 core: Black
2 core: Yellow Green
3 core: Yellow Green Red
4 core: Yellow Green Red Blue
5 core: Yellow Green Red Blue Black
5.Sheath Colour:
Black
Parameter
3C standard IEC 60502-1（CU/PVC/PVC）
5C standard IEC 60502-1（CU/PVC/PVC）
3C standard IEC 60502-1（AL/PVC/PVC）
5C standard IEC 60502-1（AL/PVC/PVC）
| 3C 0.6/1kV LV power cable standard IEC 60502-1（CU/PVC/PVC） | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 3*1.5 | 7 | 0.8 | 1.8 | 10.83 | 40.24 | 149.83 | 12.100 |
| 3*2.5 | 7 | 0.8 | 1.8 | 11.80 | 66.81 | 191.76 | 7.410 |
| 3*4 | 7 | 1.0 | 1.8 | 13.83 | 107.53 | 273.08 | 4.610 |
| 3*6 | 7 | 1.0 | 1.8 | 15.06 | 160.97 | 348.69 | 3.080 |
| 3*10 | 7 | 1.0 | 1.8 | 17.07 | 271.23 | 496.06 | 1.830 |
| 3*16 | 7 | 1.0 | 1.8 | 19.40 | 435.18 | 704.58 | 1.150 |
| 3*25 | 7 | 1.2 | 1.8 | 22.99 | 675.21 | 1034.50 | 0.727 |
| 3*35 | 7 | 1.2 | 1.8 | 24.41 | 945.10 | 1337.27 | 0.524 |
| 3*50 | 19 | 1.4 | 1.9 | 28.43 | 1352.81 | 1869.36 | 0.387 |
| 3*70 | 19 | 1.4 | 2.0 | 31.97 | 1902.19 | 2519.33 | 0.268 |
| 3*95 | 19 | 1.6 | 2.1 | 36.48 | 2565.28 | 3348.98 | 0.193 |
| 3*120 | 19 | 1.6 | 2.2 | 39.84 | 3241.71 | 4139.06 | 0.153 |
| 3*150 | 37 | 1.8 | 2.4 | 44.41 | 4053.53 | 5164.25 | 0.124 |
| 3*185 | 37 | 2.0 | 2.5 | 48.91 | 4995.54 | 6324.91 | 0.0991 |
| 3*240 | 61 | 2.2 | 2.7 | 55.13 | 6507.37 | 8161.82 | 0.0754 |
| 3*300 | 61 | 2.4 | 2.9 | 60.99 | 8105.69 | 10104.04 | 0.0601 |
| 3*400 | 61 | 2.6 | 3.2 | 69.36 | 10831.92 | 13351.69 | 0.0470 |
| 5C 0.6/1kV LV power cable standard IEC 60502-1（CU/PVC/PVC） | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 5*1.5 | 7 | 0.8 | 1.8 | 12.53 | 67.07 | 211.23 | 12.100 |
| 5*2.5 | 7 | 0.8 | 1.8 | 13.75 | 111.35 | 277.04 | 7.410 |
| 5*4 | 7 | 1.0 | 1.8 | 16.29 | 179.21 | 403.84 | 4.610 |
| 5*6 | 7 | 1.0 | 1.8 | 17.82 | 268.28 | 524.38 | 3.080 |
| 5*10 | 7 | 1.0 | 1.8 | 20.34 | 452.06 | 760.80 | 1.830 |
| 5*16 | 7 | 1.0 | 1.8 | 23.25 | 725.30 | 1097.21 | 1.150 |
| 5*25 | 7 | 1.2 | 1.8 | 27.73 | 1125.35 | 1629.07 | 0.727 |
| 5*35 | 7 | 1.2 | 1.9 | 29.66 | 1575.17 | 2138.01 | 0.524 |
| 5*50 | 19 | 1.4 | 2.1 | 34.84 | 2254.68 | 3016.08 | 0.387 |
| 5*70 | 19 | 1.4 | 2.2 | 39.22 | 3170.31 | 4076.63 | 0.268 |
| 5*95 | 19 | 1.6 | 2.4 | 45.00 | 4275.47 | 5449.60 | 0.193 |
| 5*120 | 19 | 1.6 | 2.5 | 49.15 | 5402.84 | 6741.62 | 0.153 |
| 5*150 | 37 | 1.8 | 2.7 | 54.76 | 6755.88 | 8408.32 | 0.124 |
| 5*185 | 37 | 2.0 | 2.9 | 60.54 | 8325.91 | 10332.67 | 0.0991 |
| 5*240 | 61 | 2.2 | 3.2 | 68.41 | 10845.62 | 13365.53 | 0.0754 |
| 5*300 | 61 | 2.4 | 3.4 | 75.64 | 13509.48 | 16540.92 | 0.0601 |
| 5*400 | 61 | 2.6 | 3.7 | 85.95 | 18053.20 | 21851.89 | 0.0470 |
| 3C 0.6/1kV LV power cable standard IEC 60502-1（AL/PVC/PVC） | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 3*10 | 7 | 1.0 | 1.8 | 17.07 | 82.47 | 307.30 | 3.080 |
| 3*16 | 7 | 1.0 | 1.8 | 19.40 | 132.32 | 401.72 | 1.910 |
| 3*25 | 7 | 1.2 | 1.8 | 22.99 | 205.30 | 564.58 | 1.200 |
| 3*35 | 7 | 1.2 | 1.8 | 24.41 | 287.36 | 679.53 | 0.868 |
| 3*50 | 19 | 1.4 | 1.9 | 28.43 | 411.32 | 927.87 | 0.641 |
| 3*70 | 19 | 1.4 | 2.0 | 31.97 | 578.36 | 1195.51 | 0.443 |
| 3*95 | 19 | 1.6 | 2.1 | 36.48 | 779.97 | 1563.68 | 0.320 |
| 3*120 | 19 | 1.6 | 2.2 | 39.84 | 985.64 | 1883.00 | 0.253 |
| 3*150 | 37 | 1.8 | 2.4 | 44.41 | 1232.47 | 2343.19 | 0.206 |
| 3*185 | 37 | 2.0 | 2.5 | 48.91 | 1518.89 | 2848.26 | 0.164 |
| 3*240 | 61 | 2.2 | 2.7 | 55.13 | 1978.56 | 3633.01 | 0.125 |
| 3*300 | 61 | 2.4 | 2.9 | 60.99 | 2464.53 | 4462.88 | 0.100 |
| 3*400 | 61 | 2.6 | 3.2 | 69.36 | 3293.44 | 5813.21 | 0.078 |
| 5C 0.6/1kV LV power cable standard IEC 60502-1（AL/PVC/PVC） | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 5*10 | 7 | 1.0 | 1.8 | 20.34 | 137.45 | 446.19 | 3.080 |
| 5*16 | 7 | 1.0 | 1.8 | 23.25 | 220.53 | 592.44 | 1.910 |
| 5*25 | 7 | 1.2 | 1.8 | 27.73 | 342.16 | 845.89 | 1.200 |
| 5*35 | 7 | 1.2 | 1.9 | 29.66 | 478.93 | 1041.77 | 0.868 |
| 5*50 | 19 | 1.4 | 2.1 | 34.84 | 685.53 | 1446.94 | 0.641 |
| 5*70 | 19 | 1.4 | 2.2 | 39.22 | 963.93 | 1870.26 | 0.443 |
| 5*95 | 19 | 1.6 | 2.4 | 45.00 | 1299.95 | 2474.08 | 0.320 |
| 5*120 | 19 | 1.6 | 2.5 | 49.15 | 1642.73 | 2981.51 | 0.253 |
| 5*150 | 37 | 1.8 | 2.7 | 54.76 | 2054.12 | 3706.56 | 0.206 |
| 5*185 | 37 | 2.0 | 2.9 | 60.54 | 2531.49 | 4538.25 | 0.164 |
| 5*240 | 61 | 2.2 | 3.2 | 68.41 | 3297.61 | 5817.51 | 0.125 |
| 5*300 | 61 | 2.4 | 3.4 | 75.64 | 4107.55 | 7138.99 | 0.100 |
| 5*500 | 61 | 2.6 | 3.7 | 85.95 | 5489.07 | 9287.75 | 0.078 |
