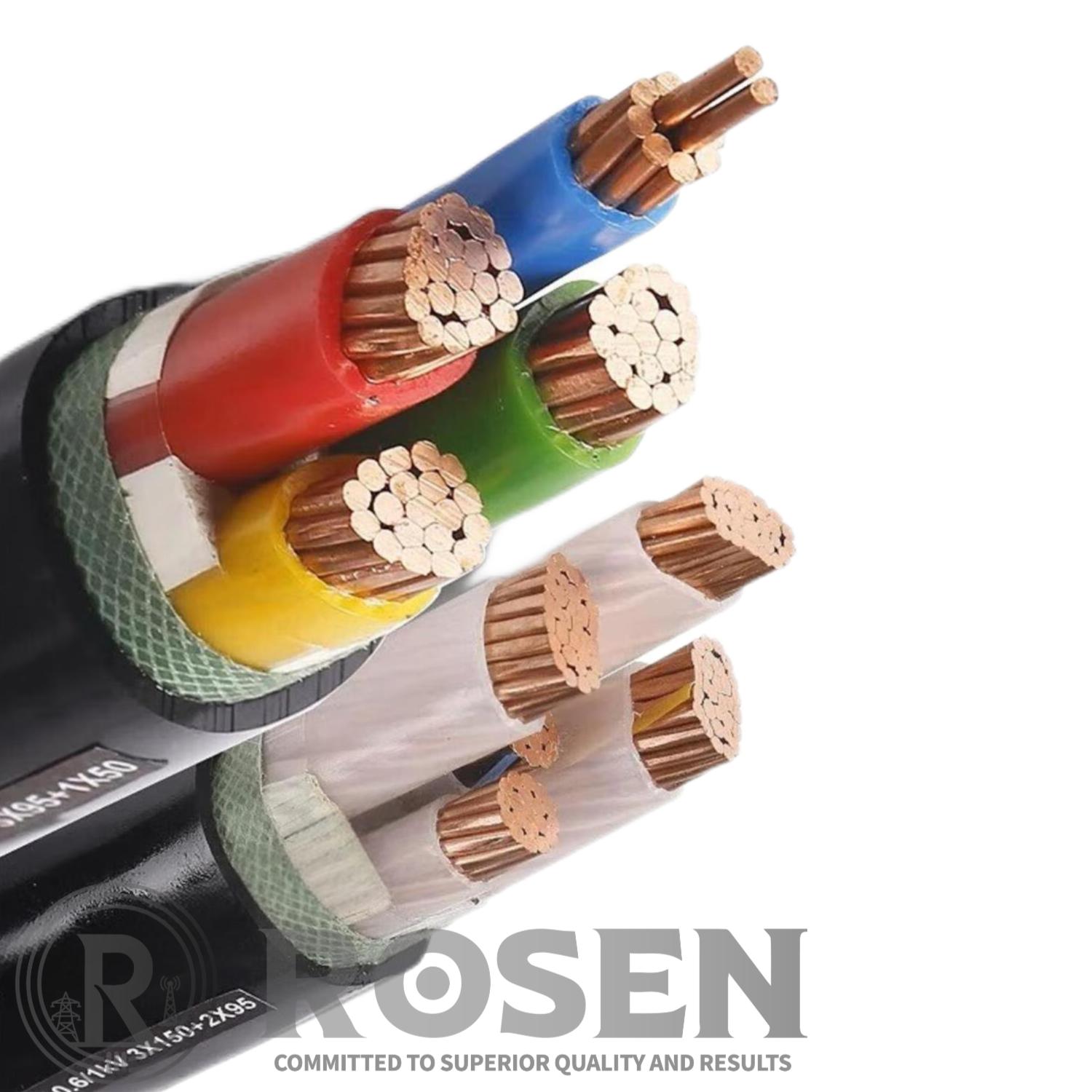

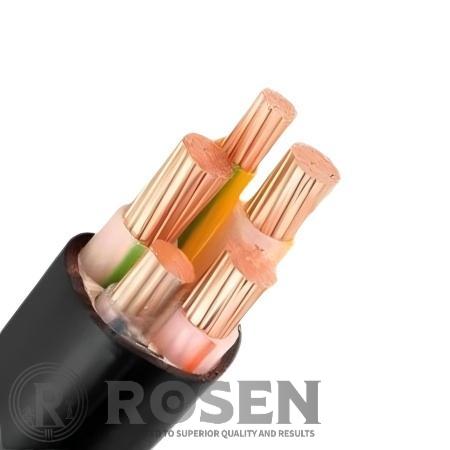

APPLICATION
To be used for main power supply, In low voltage distribution power networks, industrial installations, in buildings and operation stations. fixed installation in the ground or in concrete, in the cable trenches or cable, ducts, indoor or outdoor areas, in dry or wet locations.
CHARACTERISTICS
Voltage Rating U/Uo
0.6/1kV Suitable for 1.8/3kV.
Temperature Rating
Fixed:-40℃ to 105℃
Flexed:-25℃ to 105℃
STANDARDS
BS 5467, IEC 60502
Flame Retardant according to IEC 60332
Conductor
Class 1,2 or 5 Copper(AL) conductor
Insulation
XLPE(Cross-Linked Polyethylene),LSZH,PE,PVC
Sheath
LSZH, PE, PVC
Core Identification
1 core: Black
2 core: Yellow Green
3 core: Yellow Green Red
4 core: Yellow Green Red Blue
5 core: Yellow Green Red Blue Black
Sheath Colour
Black
| CU conductor three core 0.6/1kV LV power cable standard IEC 60502-1（CU/XLPE/PVC） | ||||||||
| NO./mm2 | Conductor NO. | insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) | Carrying capacity（A） |
| 3*1.5 | 7 | 0.7 | 1.8 | 10.41 | 40.61 | 135.73 | 12.100 | 19 |
| 3*2.5 | 7 | 0.7 | 1.8 | 11.39 | 67.68 | 176.32 | 7.410 | 28 |
| 3*4 | 7 | 0.7 | 1.8 | 12.55 | 108.28 | 233.18 | 4.610 | 37 |
| 3*6 | 7 | 0.7 | 1.8 | 13.79 | 162.42 | 305.20 | 3.080 | 47 |
| 3*10 | 7 | 0.7 | 1.8 | 15.76 | 270.70 | 442.75 | 1.830 | 65 |
| 3*16 | 7 | 0.7 | 1.8 | 18.08 | 433.12 | 641.02 | 1.150 | 84 |
| 3*25 | 7 | 0.9 | 1.8 | 21.71 | 676.75 | 955.70 | 0.727 | 110 |
| 3*35 | 7 | 0.9 | 1.8 | 23.13 | 947.45 | 1259.92 | 0.524 | 135 |
| 3*50 | 19 | 1.0 | 1.8 | 26.51 | 1353.50 | 1737.90 | 0.387 | 170 |
| 3*70 | 19 | 1.1 | 1.9 | 30.44 | 1894.90 | 2378.65 | 0.268 | 215 |
| 3*95 | 19 | 1.1 | 2.1 | 34.35 | 2571.65 | 3165.78 | 0.193 | 265 |
| 3*120 | 19 | 1.2 | 2.2 | 38.14 | 3248.41 | 3959.45 | 0.153 | 310 |
| 3*150 | 37 | 1.4 | 2.3 | 42.51 | 4060.51 | 4927.23 | 0.124 | 350 |
| 3*185 | 37 | 1.6 | 2.5 | 47.23 | 5007.96 | 6072.10 | 0.099 | 405 |
| 3*240 | 61 | 1.7 | 2.7 | 52.94 | 6496.81 | 7796.49 | 0.075 | 480 |
| 3*300 | 61 | 1.8 | 2.8 | 58.24 | 8121.02 | 9644.27 | 0.060 | 555 |
| 3*400 | 61 | 2.0 | 3.1 | 66.56 | 10828.02 | 12776.25 | 0.047 | 640 |
| CU conductor five core 0.6/1kV LV power cable standard IEC 60502-1（CU/XLPE/PVC） | ||||||||
| NO./mm2 | Conductor NO. | insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) | Carrying capacity（A） |
| 5*1.5 | 7 | 0.7 | 1.8 | 12.01 | 67.68 | 188.61 | 12.100 | 19 |
| 5*2.5 | 7 | 0.7 | 1.8 | 13.24 | 112.79 | 252.06 | 7.410 | 28 |
| 5*4 | 7 | 0.7 | 1.8 | 14.69 | 180.47 | 341.78 | 4.610 | 37 |
| 5*6 | 7 | 0.7 | 1.8 | 16.24 | 270.70 | 456.27 | 3.080 | 47 |
| 5*10 | 7 | 0.7 | 1.8 | 18.70 | 451.17 | 676.46 | 1.830 | 65 |
| 5*16 | 7 | 0.7 | 1.8 | 21.60 | 721.87 | 995.84 | 1.150 | 84 |
| 5*25 | 7 | 0.9 | 1.8 | 26.13 | 1127.92 | 1502.06 | 0.727 | 110 |
| 5*35 | 7 | 0.9 | 1.8 | 27.86 | 1579.09 | 1997.33 | 0.524 | 135 |
| 5*50 | 19 | 1.0 | 2.0 | 32.49 | 2255.84 | 2804.74 | 0.387 | 170 |
| 5*70 | 19 | 1.1 | 2.2 | 37.55 | 3158.17 | 3865.94 | 0.268 | 215 |
| 5*95 | 19 | 1.1 | 2.3 | 42.14 | 4286.09 | 5128.07 | 0.193 | 265 |
| 5*120 | 19 | 1.2 | 2.5 | 47.03 | 5414.01 | 6443.33 | 0.153 | 310 |
| 5*150 | 37 | 1.4 | 2.7 | 52.64 | 6767.51 | 8047.42 | 0.124 | 350 |
| 5*185 | 37 | 1.6 | 2.8 | 58.24 | 8346.60 | 9884.45 | 0.099 | 405 |
| 5*240 | 61 | 1.7 | 3.1 | 65.47 | 10828.02 | 12728.90 | 0.075 | 480 |
| 5*300 | 61 | 1.8 | 3.3 | 72.25 | 13535.03 | 15791.94 | 0.060 | 555 |
| 5*400 | 61 | 2.0 | 3.6 | 82.50 | 18046.70 | 20913.47 | 0.047 | 640 |
| AL conductor three core 0.6/1kV LV power cable standard IEC 60502-1（AL/XLPE/PVC） | ||||||||
| NO./mm2 | Conductor NO. | insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | AL weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) | Carrying capacity（A） |
| 3*10 | 7 | 0.7 | 1.8 | 15.76 | 82.31 | 254.36 | 3.080 | 50 |
| 3*16 | 7 | 0.7 | 1.8 | 18.08 | 131.69 | 339.59 | 1.910 | 65 |
| 3*25 | 7 | 0.9 | 1.8 | 21.71 | 205.77 | 484.72 | 1.200 | 87 |
| 3*35 | 7 | 0.9 | 1.8 | 23.13 | 288.07 | 600.54 | 0.868 | 105 |
| 3*50 | 19 | 1.0 | 1.8 | 26.51 | 411.53 | 795.93 | 0.641 | 130 |
| 3*70 | 19 | 1.1 | 1.9 | 30.44 | 576.14 | 1059.89 | 0.443 | 165 |
| 3*95 | 19 | 1.1 | 2.1 | 34.35 | 781.91 | 1376.04 | 0.320 | 205 |
| 3*120 | 19 | 1.2 | 2.2 | 38.14 | 987.68 | 1698.72 | 0.253 | 240 |
| 3*150 | 37 | 1.4 | 2.3 | 42.51 | 1234.60 | 2101.32 | 0.206 | 270 |
| 3*185 | 37 | 1.6 | 2.5 | 47.23 | 1522.67 | 2586.81 | 0.164 | 315 |
| 3*240 | 61 | 1.7 | 2.7 | 52.94 | 1975.35 | 3275.03 | 0.125 | 375 |
| 3*300 | 61 | 1.8 | 2.8 | 58.24 | 2469.19 | 3992.45 | 0.100 | 435 |
| 3*400 | 61 | 2.0 | 3.1 | 66.56 | 3292.25 | 5240.48 | 0.078 | 510 |
| AL conductor five core 0.6/1kV LV power cable standard IEC 60502-1（AL/XLPE/PVC） | ||||||||
| NO./mm2 | Conductor NO. | insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | AL weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) | Carrying capacity（A） |
| 5*10 | 7 | 0.7 | 1.8 | 18.70 | 137.18 | 362.47 | 3.080 | 50 |
| 5*16 | 7 | 0.7 | 1.8 | 21.60 | 219.48 | 493.46 | 1.910 | 65 |
| 5*25 | 7 | 0.9 | 1.8 | 26.13 | 342.94 | 717.08 | 1.200 | 87 |
| 5*35 | 7 | 0.9 | 1.8 | 27.86 | 480.12 | 898.37 | 0.868 | 105 |
| 5*50 | 19 | 1.0 | 2.0 | 32.49 | 685.89 | 1234.79 | 0.641 | 130 |
| 5*70 | 19 | 1.1 | 2.2 | 37.55 | 960.24 | 1668.01 | 0.443 | 165 |
| 5*95 | 19 | 1.1 | 2.3 | 42.14 | 1303.18 | 2145.16 | 0.320 | 205 |
| 5*120 | 19 | 1.2 | 2.5 | 47.03 | 1646.13 | 2675.44 | 0.253 | 240 |
| 5*150 | 37 | 1.4 | 2.7 | 52.64 | 2057.66 | 3337.57 | 0.206 | 270 |
| 5*185 | 37 | 1.6 | 2.8 | 58.24 | 2537.78 | 4075.63 | 0.164 | 315 |
| 5*240 | 61 | 1.7 | 3.1 | 65.47 | 3292.25 | 5193.14 | 0.125 | 375 |
| 5*300 | 61 | 1.8 | 3.3 | 72.25 | 4115.32 | 6372.24 | 0.100 | 435 |
| 5*500 | 61 | 2.0 | 3.6 | 82.50 | 5487.09 | 8353.86 | 0.078 | 510 |
