Characteristics
Voltage Rating Uo/U
300/500V（450/750V）
Temperature Rating
Max. working temperature: The working temperature is below 90ºC.
Standards
EN 50525
IEC 60227
Overview

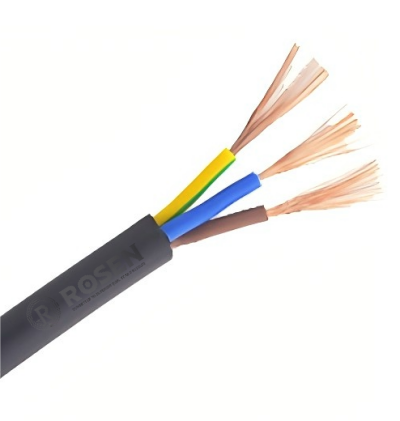

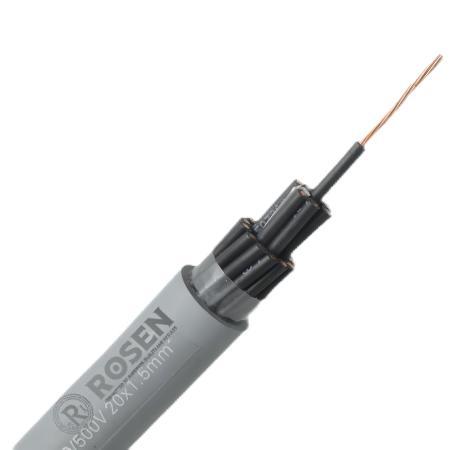

Construction
1.Conductor：
Flexible electrolytic copper conductor (Class 5) according to BS EN 60228 (previously BS6360) and UNE 60228
2.Insulation：
PVC insulation
3.Sheath：
PVC sheath
Parameter
Flexible Cable standard (IEC 60227)
| Flexible PVC Insulated Cable 300/500V standard IEC 60227 | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 2*0.75 | 0.20 | 0.6 | 0.8 | 6.40 | 13.61 | 57.43 | 26.00 |
| 2*1 | 0.20 | 0.6 | 0.8 | 6.70 | 18.14 | 65.60 | 19.50 |
| 2*1.5 | 0.25 | 0.7 | 0.8 | 7.56 | 27.46 | 87.45 | 13.30 |
| 2*2.5 | 0.25 | 0.8 | 1.0 | 9.70 | 45.18 | 141.73 | 7.98 |
| 3*0.75 | 0.20 | 0.6 | 0.8 | 6.78 | 20.41 | 68.45 | 26.00 |
| 3*1 | 0.20 | 0.6 | 0.8 | 7.11 | 27.21 | 79.11 | 19.50 |
| 3*1.5 | 0.25 | 0.7 | 0.9 | 8.24 | 41.19 | 110.71 | 13.30 |
| 3*2.5 | 0.25 | 0.8 | 1.1 | 10.52 | 67.77 | 177.62 | 7.98 |
| 4*0.75 | 0.20 | 0.6 | 0.8 | 7.41 | 27.21 | 83.81 | 26.00 |
| 4*1 | 0.20 | 0.6 | 0.9 | 7.97 | 36.29 | 101.10 | 19.50 |
| 4*1.5 | 0.25 | 0.7 | 1.0 | 9.21 | 54.92 | 141.18 | 13.30 |
| 4*2.5 | 0.25 | 0.8 | 1.1 | 11.52 | 90.36 | 219.80 | 7.98 |
| 5*0.75 | 0.20 | 0.6 | 0.9 | 8.28 | 34.02 | 104.72 | 26.00 |
| 5*1 | 0.20 | 0.6 | 0.9 | 8.69 | 45.36 | 121.76 | 19.50 |
| 5*1.5 | 0.25 | 0.7 | 1.1 | 10.25 | 68.65 | 175.23 | 13.30 |
| 2*2.5 | 0.25 | 0.8 | 1.2 | 12.80 | 112.95 | 272.35 | 7.98 |
