Characteristics
Voltage Rating
300V
Operating Temperature
Fixed: -40°C to +90°C
Flexed: 0°C to +90°C
Minimum Bending Radius
12 x overall diameter
Standards
EN 50288-7, EN 50288-1, EN 60228
Flame Retardant to: IEC/EN 60332-1-2, IEC/EN 60332-3-24
Low Smoke Halogen Free to: IEC/EN 60754-1/2, IEC/EN61034-2
UV Resistant to UL 1581

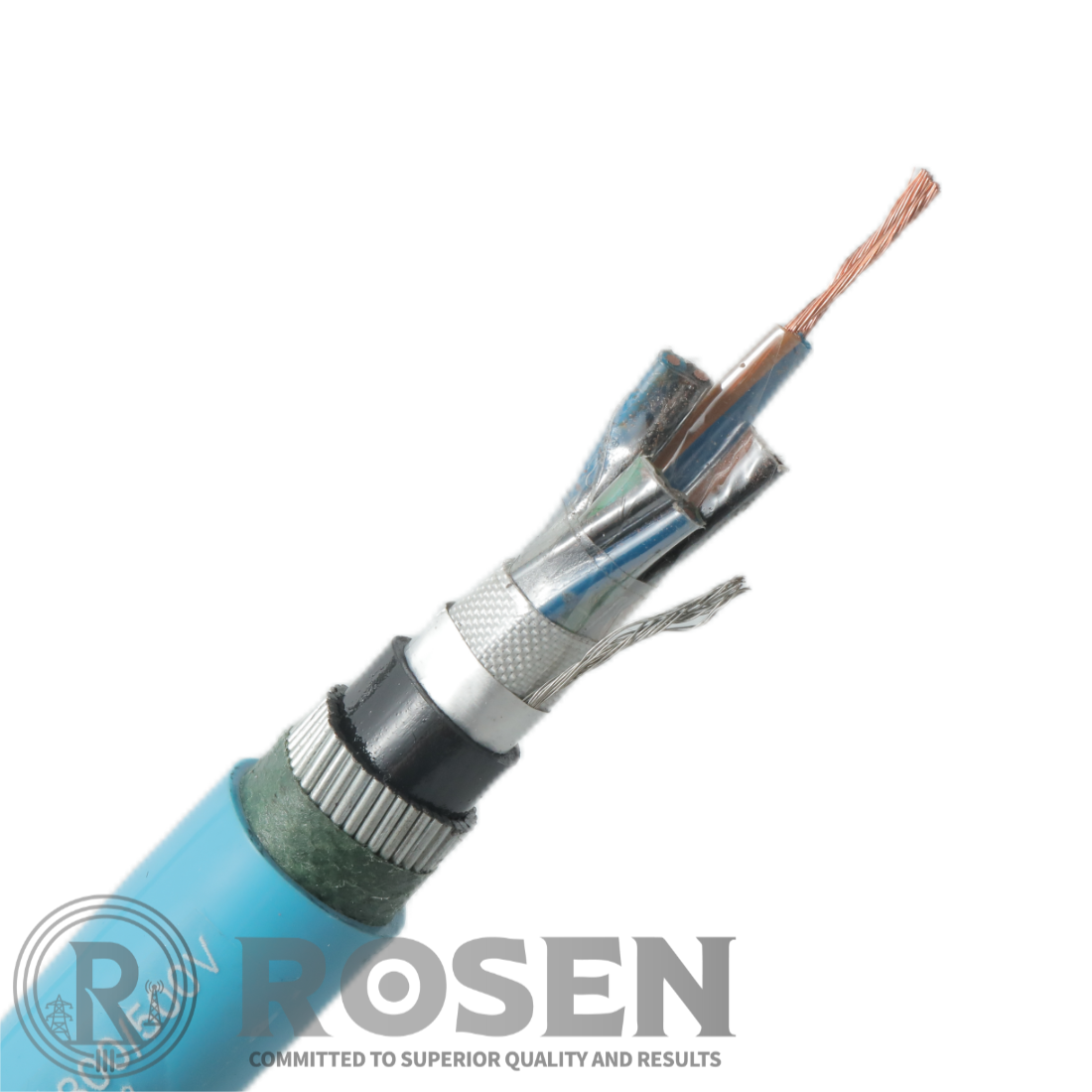

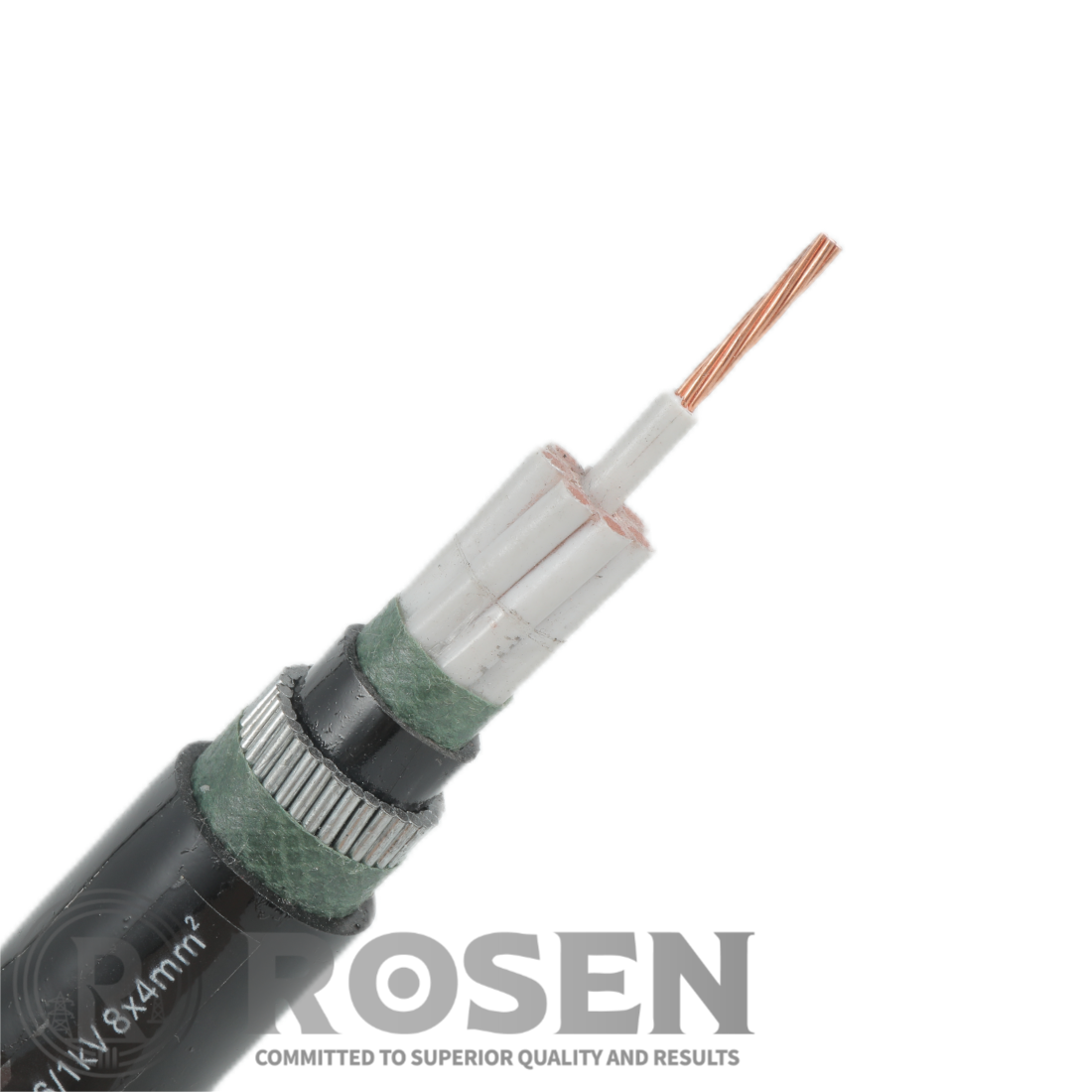

1.Conductor:
Copper wires
2.Insulation:
XLPE (Cross-Linked Polyethylene)
3.Collective Screen:
Al/PET (Aluminium/Polyester Tape)
4.Drain Wire:
Tinned Copper
5.Inner Sheath:
LSZH, PVC
6.Armour:
GSWA (Galvanised steel wires) or GSWB(Galvanised steel wires braid) or MC-HL or AIA(Aluminum interlocked armor)
7.Outer Sheath:
LSZH,PVC - UV Resistant
8.Core Identification:
Pairs: White Black, numbered
Triples: White Black Red
9.Outer Sheath Colour:
Blue Black
10.Note:
500V rated cables available on request
| XLPE insulation OS shield armour instrumentation cable | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Armour of wire（mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 1*2*1.5 | 7 | 0.6 | 0.80 | 12.03 | 26.94 | 267.21 | 12.1 |
| 2*2*1.5 | 7 | 0.6 | 1.25 | 17.73 | 53.87 | 562.63 | 12.1 |
| 4*2*1.5 | 7 | 0.6 | 1.25 | 19.83 | 107.75 | 710.16 | 12.1 |
| 5*2*1.5 | 7 | 0.6 | 1.60 | 22.14 | 134.68 | 936.13 | 12.1 |
| 6*2*1.5 | 7 | 0.6 | 1.60 | 23.64 | 161.62 | 1036.82 | 12.1 |
| 8*2*1.5 | 7 | 0.6 | 1.60 | 26.10 | 215.49 | 1217.96 | 12.1 |
| 10*2*1.5 | 7 | 0.6 | 1.60 | 29.26 | 269.37 | 1445.67 | 12.1 |
| 12*2*1.5 | 7 | 0.6 | 1.60 | 30.26 | 323.24 | 1567.51 | 12.1 |
| 16*2*1.5 | 7 | 0.6 | 2.00 | 33.97 | 430.99 | 2084.15 | 12.1 |
| 20*2*1.5 | 7 | 0.6 | 2.00 | 37.13 | 538.73 | 2395.96 | 12.1 |
| 24*2*1.5 | 7 | 0.6 | 2.00 | 40.69 | 646.48 | 2737.13 | 12.1 |
| 48*2*1.5 | 7 | 0.6 | 2.50 | 53.07 | 1292.96 | 4723.89 | 12.1 |
| XLPE insulation IS/OS shield armour instrumentation cable | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Armour of wire（mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 1*2*1.5 | 7 | 0.6 | 0.80 | 12.03 | 26.94 | 267.21 | 12.1 |
| 2*2*1.5 | 7 | 0.6 | 1.25 | 17.91 | 53.87 | 583.89 | 12.1 |
| 4*2*1.5 | 7 | 0.6 | 1.25 | 20.05 | 107.75 | 747.66 | 12.1 |
| 5*2*1.5 | 7 | 0.6 | 1.60 | 22.38 | 134.68 | 983.71 | 12.1 |
| 6*2*1.5 | 7 | 0.6 | 1.60 | 23.91 | 161.62 | 1092.99 | 12.1 |
| 8*2*1.5 | 7 | 0.6 | 1.60 | 26.41 | 215.49 | 1290.90 | 12.1 |
| 10*2*1.5 | 7 | 0.6 | 1.60 | 29.81 | 269.37 | 1549.70 | 12.1 |
| 12*2*1.5 | 7 | 0.6 | 1.60 | 30.63 | 323.24 | 1673.52 | 12.1 |
| 16*2*1.5 | 7 | 0.6 | 2.00 | 34.39 | 430.99 | 2225.54 | 12.1 |
| 20*2*1.5 | 7 | 0.6 | 2.00 | 37.60 | 538.73 | 2570.13 | 12.1 |
| 24*2*1.5 | 7 | 0.6 | 2.00 | 41.22 | 646.48 | 2944.52 | 12.1 |
| 48*2*1.5 | 7 | 0.6 | 2.50 | 53.79 | 1292.96 | 5128.38 | 12.1 |
