PVC INSULATED SHIELDED CABLE (LIYCY)

Application

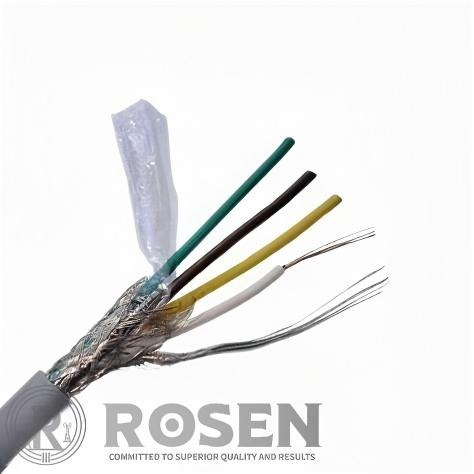

LiYCY is a VDE approved, flexible, overall shielded, PVC multi-conductor European data transmission cable.

For use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, moist and wet conditions.

Commonly used as control and signal cables in the Jelectronics of computers systems, electronic control equipment, office machines and measurement devices in the tool making and machine industries.

The tinned copper braid shield offers better protection against electrical linterference for precise impulse transmissions.

LiYcY is recommended when a small outer diameter is required. Not permitted for outdoor use.

Play product video

Overview

Characteristics

Voltage Rating (Uo/U)

300/500V 450/750V

Voltage Test

1.2kV 2.5kV

Temperature Rating

Fixed:-30°C to +80℃

During Installation: -5°C to +70°C

Minimum Bending Radius

Fixed Installation: 6 x overall diameter

Standards

VDE 0482-332-1-2,EN 60811-2

Fire Retardant according to: IEC 60332-1

Construction

1.Conductor:

Class 5 Fine Stranded Bare Copper

2.Insulation:

PVC (Polyvinyl chloride)

3.Screen:

TCWB (Tinned Copper Wire Braid)

4.Outer Sheath:

PVC (Polyvinyl chloride)

Parameter

PVC insulated shielded cable standard VDE 0248 （CU/PVC/TCWB/PVC)

PVC insulated shielded cable standard VDE 0248 （CU/PVC/TCWB/PVC)
NO./mm2	Wires OD （mm）	Insulation thickness （mm）	Shield wire diameter（mm）	Jacket thickness （mm）	Diameter of cable（mm）	CU weight (kg/km)	Weight of cable (kg/km)	DC Resistance (Ω/km)
2*1.0	0.2	0.6	0.2	1.2	8.20	18.05	94.86	19.5
3*1.0	0.2	0.6	0.2	1.2	8.61	27.07	112.30	19.5
4*1.0	0.2	0.6	0.2	1.2	9.27	36.09	133.56	19.5
5*1.0	0.2	0.6	0.2	1.2	9.99	45.12	155.95	19.5
7*1.0	0.2	0.6	0.2	1.2	10.75	63.16	191.35	19.5
9*1.0	0.2	0.6	0.2	1.5	13.39	81.21	266.96	19.5
12*1.0	0.2	0.6	0.2	1.5	14.51	108.28	335.43	19.5
14*1.0	0.2	0.6	0.2	1.5	15.15	126.33	372.43	19.5
19*1.0	0.2	0.6	0.2	1.5	16.65	171.44	464.35	19.5
37*1.0	0.2	0.6	0.2	1.7	22.15	333.86	822.40	19.5
61*1.0	0.2	0.6	0.3	1.7	27.65	550.42	1319.42	19.5
2*1.5	0.2	0.7	0.2	1.2	9.06	27.07	117.97	13.3
3*1.5	0.2	0.7	0.2	1.2	9.54	40.61	142.22	13.3
4*1.5	0.2	0.7	0.2	1.2	10.31	54.14	171.21	13.3
5*1.5	0.2	0.7	0.2	1.2	11.15	67.68	201.66	13.3
7*1.5	0.2	0.7	0.2	1.2	12.04	94.75	250.96	13.3
9*1.5	0.2	0.7	0.2	1.5	15.22	121.82	364.81	13.3
12*1.5	0.2	0.7	0.2	1.5	16.30	162.42	440.11	13.3
14*1.5	0.2	0.7	0.2	1.5	17.04	189.49	491.52	13.3
19*1.5	0.2	0.7	0.2	1.5	18.80	257.17	619.47	13.3
37*1.5	0.2	0.7	0.3	1.7	25.56	500.80	1170.72	13.3
61*1.5	0.2	0.7	0.3	2.0	32.12	825.64	1838.56	13.3
2*2.5	0.2	0.7	0.2	1.2	10.40	45.12	156.76	7.98
3*2.5	0.2	0.7	0.2	1.2	10.98	67.68	192.62	7.98
4*2.5	0.2	0.7	0.2	1.2	11.93	90.23	234.81	7.98
5*2.5	0.2	0.7	0.2	1.5	13.56	112.79	297.41	7.98
7*2.5	0.2	0.7	0.2	1.5	14.85	157.91	387.93	7.98
9*2.5	0.2	0.7	0.2	1.5	17.77	203.03	506.37	7.98
12*2.5	0.2	0.7	0.2	1.7	19.48	270.70	635.77	7.98
14*2.5	0.2	0.7	0.2	1.7	20.40	315.82	712.70	7.98
19*2.5	0.2	0.7	0.2	1.7	22.55	428.61	904.41	7.98
37*2.5	0.2	0.7	0.3	2.0	30.85	834.66	1721.94	7.98
61*2.5	0.2	0.7	0.4	2.2	38.95	1376.06	2784.24	7.98
