Characteristics
Voltage Rating Uo/U
300/500V（450/750V）
Temperature Rating
Max. working temperature: The working temperature is below 105ºC.
Standards
IEC 60227, IEC 60228, IEC 60332, IEC 61158
Overview

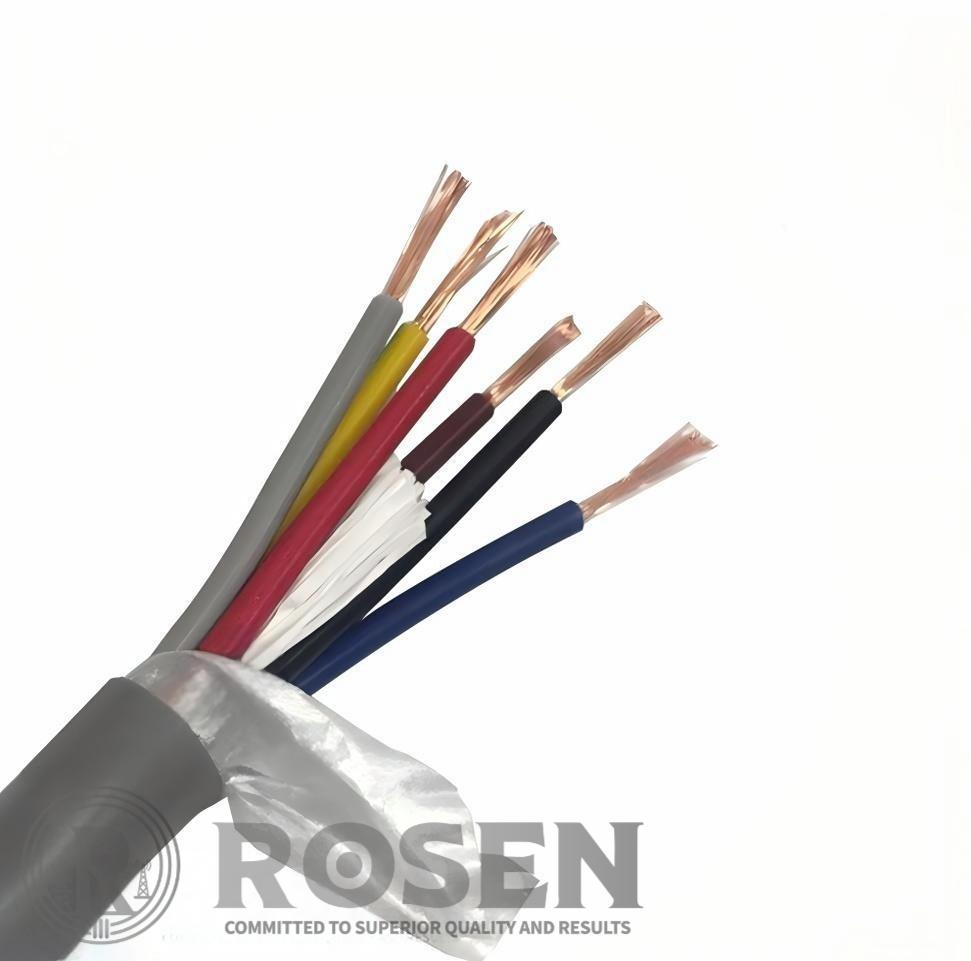

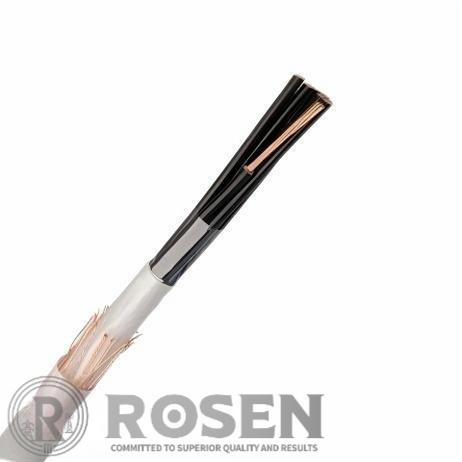

Construction
1.Conductor：
Class 2 stranded copper conductor
2.Insulation：
PVC (XLPE)
3.Overall Screen：
Aluminum plastic composite tape with drain wire(Tinned copper wire braid)
4.Sheath：
PVC (Polyvinyl Chloride)
Parameter
Control cable Standard IEC 60227
| Control cable Standard IEC 60227 (CU/PVC/OS/PVC) | |||||||
| NO./mm2 | Conductor NO. | Insulation thickness （mm） | Jacket thickness （mm） | Diameter of cable（mm） | CU weight (kg/km) | Weight of cable (kg/km) | DC Resistance (Ω/km) |
| 2*1.5 | 7 | 0.7 | 1.2 | 8.53 | 27.07 | 98.96 | 12.100 |
| 3*1.5 | 7 | 0.7 | 1.2 | 9.01 | 40.61 | 121.65 | 12.100 |
| 4*1.5 | 7 | 0.7 | 1.2 | 9.78 | 54.14 | 148.11 | 12.100 |
| 5*1.5 | 7 | 0.7 | 1.2 | 10.61 | 67.68 | 175.83 | 12.100 |
| 7*1.5 | 7 | 0.7 | 1.2 | 11.50 | 94.75 | 222.19 | 12.100 |
| 9*1.5 | 7 | 0.7 | 1.5 | 14.47 | 121.82 | 311.05 | 12.100 |
| 12*1.5 | 7 | 0.7 | 1.5 | 15.54 | 162.42 | 381.46 | 12.100 |
| 14*1.5 | 7 | 0.7 | 1.5 | 16.28 | 189.49 | 429.46 | 12.100 |
| 19*1.5 | 7 | 0.7 | 1.5 | 18.04 | 257.17 | 549.36 | 12.100 |
| 37*1.5 | 7 | 0.7 | 1.7 | 24.37 | 500.80 | 1014.94 | 12.100 |
| 61*1.5 | 7 | 0.7 | 2.0 | 30.90 | 825.64 | 1638.53 | 12.100 |
