Standards
ITU-TG.652,655
EIA/TIA 598B
IEC 60794-4-10,60794-1-2
IEEE 1138
IEC 61232,60104,61089.
Overview

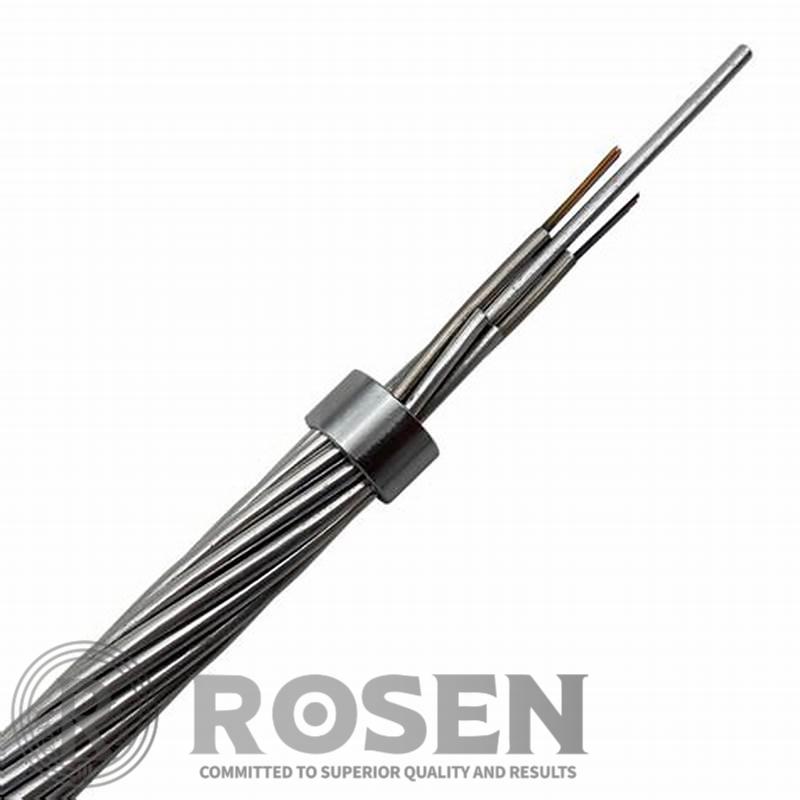

Construction
Product Features
·Stainless steel tube protects optical fibers, with high tensile strength
·Small cable diameter, light weight, low additional load on the tower
·The optical unit forms a suitable primary fiber surplus length
·The tensile, torsional, and lateral compression resistance are slightly inferior
Parameter
Specific model and technical parameters
| Specific model and technical parameters | |||||
| Product Range | Fiber count (Max ) | Diameter ( mm) | Weight (kg/Km) | UTS (KN) | Short Circuit (KA² Sec ) |
| OPGW 12[55,20] | 12 | 10 | 349 | 55 | 20 |
| OPGW 12[64,35] | 12 | 12 | 412 | 64 | 35 |
| OPGW 16[91,58] | 16 | 13 | 580 | 91 | 58 |
| OPGW 24[53,23] | 24 | 10 | 347 | 53 | 23 |
| OPGW 24[74,26] | 24 | 11 | 416 | 74 | 26 |
| OPGW 24[63,30] | 24 | 11 | 386 | 63 | 30 |
| OPGW 24[78,37] | 24 | 12 | 498 | 79 | 38 |
| OPGW 24[65,40] | 24 | 12 | 409 | 65 | 40 |
| OPGW 24[81,41] | 24 | 12 | 500 | 81 | 41 |
| OPGW 24[77,43] | 24 | 13 | 467 | 77 | 43 |
| OPGW 24[64,68] | 24 | 13 | 475 | 64 | 68 |
| OPGW 24[100,40] | 24 | 14 | 572 | 100 | 40 |
| OPGW 24[62,91] | 24 | 14 | 490 | 62 | 91 |
| OPGW 24[65,116] | 24 | 15 | 523 | 65 | 116 |
| OPGW 24[97,110] | 24 | 15 | 670 | 97 | 110 |
| OPGW 36[79,36] | 36 | 12 | 484 | 79 | 36 |
| OPGW 36[72,67] | 36 | 13 | 503 | 72 | 67 |
| OPGW 48[41,29] | 48 | 11 | 316 | 41 | 29 |
| OPGW 48[74,35] | 48 | 12 | 471 | 74 | 35 |
| OPGW 48[63,44] | 48 | 12 | 429 | 63 | 44 |
| OPGW 48[59,77] | 48 | 13 | 450 | 59 | 77 |
| OPGW 48[99,83] | 48 | 14 | 610 | 90 | 83 |
| OPGW 48[89,151] | 48 | 16 | 696 | 89 | 151 |
| OPGW 64[98,76] | 64 | 15 | 650 | 98 | 76 |
| OPGW 96[103,138] | 96 | 16 | 719 | 103 | 138 |
| OPGW 288[82,198] | 288 | 21 | 789 | 82 | 198 |
