Characteristics
Temperature range for optical cable application Operating temperature:- 40°C to+60°C
Storage and transportation temperature:- 40°C to+70°C
Installation temperature:- 20°C to+60°C
Standards
ISO 9001 ISO 14001
IEC60793-1 IEC60793-2
ITU-T G.650 ITU-T G.652
IEC60794-3-10 IEC60794-3-20

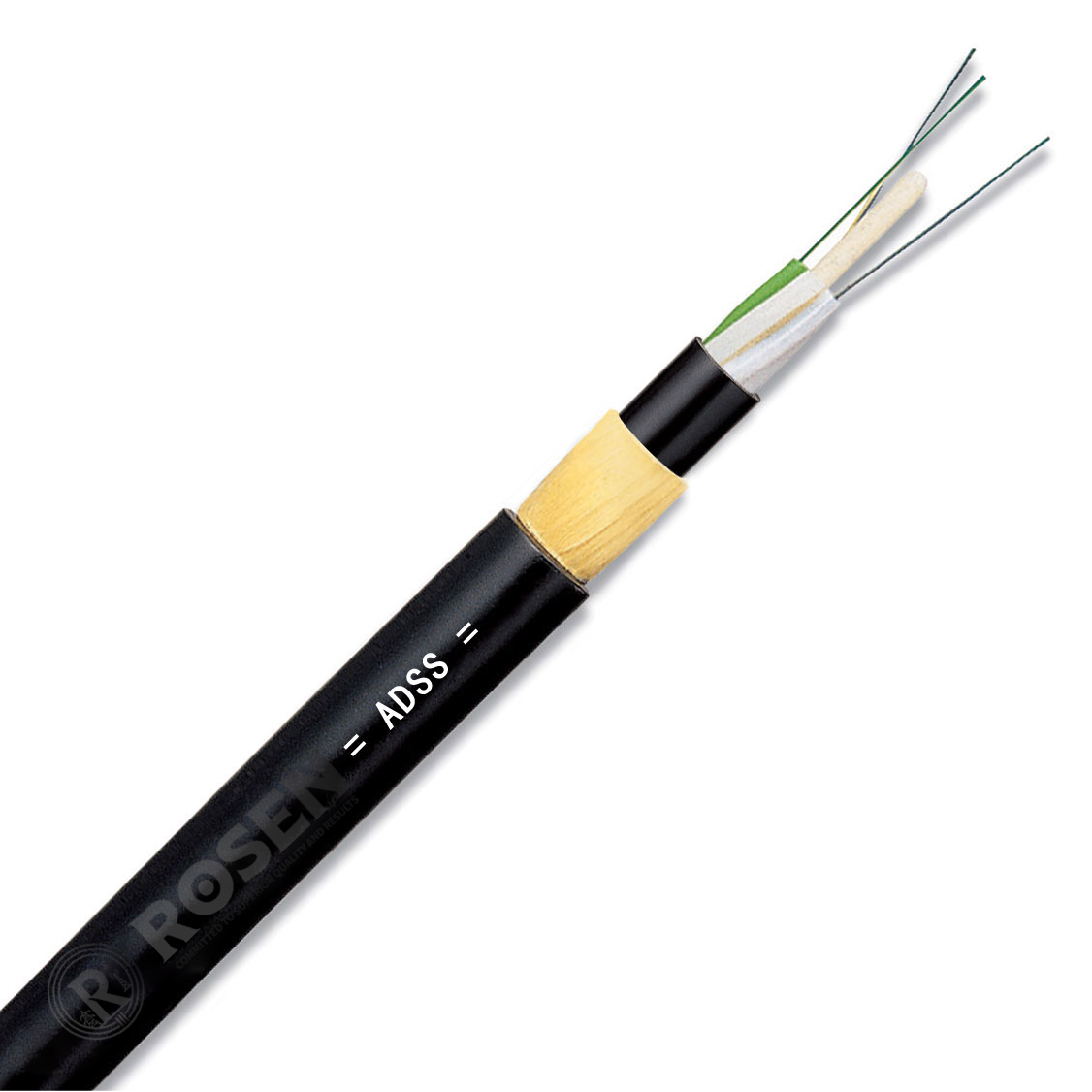

Designed and manufactured specifically for aerial installation.
Reinforced fiberglass with or without sheathing, providing a robust and resistant structure.
Loose-tube cable, a gel-filled multi-tube cable, typically double-sheathed, separated by aramid or fiberglass strands, which provides ballistic protection to the cable, giving it greater robustness.
Fully dielectric cable.
Dry core with waterblocking elements, mitigating moisture and ensuring fiber integrity.
Black thermoplastic resistant to UV rays (HDPE-MDPE) and inclement weather.
| Fibers Data | ||||
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.34 |
| 1550nm | dB/km | ≤0.22 | ||
| Optical cable structure parameter reference | |||||||||
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter /pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter /Height (mm) | Cable weight (kg/km) | Tensile resistance Long/short term N | Crush resistance Long/short term N/100m |
| 4 | 1+6 | 4 | 2.0±0.1 | 2.0/2.0 | 1.75 | 9.5±0.3 | 65 | 1500/4000 | 300/1000 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.9 | 9.8±0.3 | 70 | 1500/4000 | 300/1000 |
| 8 | 1+6 | 8 | 2.0±0.1 | 2.0/2.0 | 1.9 | 9.8±0.3 | 70 | 1500/4000 | 300/1000 |
| 12 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.9 | 9.8±0.3 | 70 | 1500/4000 | 300/1000 |
| 24 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.9 | 9.8±0.3 | 70 | 1500/4000 | 300/1000 |
| 36 | 1+6 | 12 | 2.1±0.1 | 2.2/2.2 | 1.9 | 10.2±0.3 | 82 | 1500/4000 | 300/1000 |
| 48 | 1+6 | 12 | 2.1±0.1 | 2.2/2.2 | 1.9 | 10.2±0.3 | 82 | 1500/4000 | 300/1000 |
| 60 | 1+6 | 12 | 2.1±0.1 | 2.2/2.2 | 1.9 | 10.2±0.3 | 85 | 1500/4000 | 300/1000 |
| 72 | 1+6 | 12 | 2.1±0.1 | 2.2/2.2 | 1.9 | 10.2±0.3 | 88 | 1500/4000 | 300/1000 |
| 96 | 1+8 | 12 | 2.1±0.1 | 2.2/3.6 | 2 | 12.0±0.3 | 110 | 1500/4000 | 300/1000 |
| 144 | 1+12 | 12 | 2.1±0.1 | 2.4/6.3 | 2 | 14.5±0.3 | 155 | 1500/4000 | 300/1000 |
| 216 | 1+6+12 | 12 | 2.1±0.1 | 2.2/2.2 | 2.05 | 14.7±0.3 | 165 | 1500/4000 | 300/1000 |
| 288 | 1+9+15 | 12 | 2.1±0.1 | 2.2/4.0 | 2.05 | 16.5±0.3 | 220 | 1500/4000 | 300/1000 |
| Cables Mechanical&Environmental Data | ||
| Items | Unit | Specifications |
| Max. load under installation | KN | ≤ 8.6 |
| Max. load under operation | KN | ≤ 4.2 |
| Crush（Long Term） | N/10cm | 1000 |
| Crush（Short Term） | N/10cm | 3000 |
| Min. Bend Radius（Dynamic） | mm | 20D |
| Min. Bend Radius（Static） | mm | 10D |
| Installation Temperature | ℃ | -20～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
